WebNMS SNMP Utilities is a comprehensive toolkit
with a set of cross-platform applications for SNMP-based device,
element, and network management.
WebNMS SNMP Utilities Overview
The WebNMS SNMP Utilities are used for device, element,
application, and system management. The tools can help monitor
and manage any SNMP-enabled device. The following tools form
part of the product:

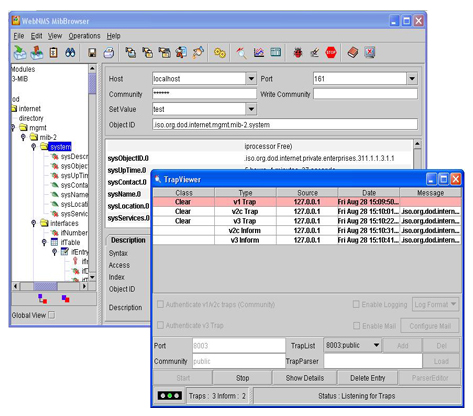

MIB Browser - used to view and operate on data
available through a SNMP agent on a managed device.
SNMP Decoder - used to view the decoded output
of the debug information.
Trap Viewer - used to parse and view the received
traps.
Proxy Forwarder - used to translate SNMPv3 request
for SNMPv1 and v2c agents.
Proxy Forwarder Configurator - tool for configuring
USM user tables and VACM entries for SNMPv3 agent.
i18Neditor - used for localization of screens.
SAS Server-Web Server - used to facilitate the
usage of SNMP management applets.
The tools can be used to manage SNMPv1, SNMPv2c, and SNMPv3
agents and interface with managed devices using any of the
three versions of the SNMP protocols at the same time.
MIB Browser and TrapViewer are available both as applications
and applets. While the applications can be used as standalone
executables, the applets can be remotely accessed via a web
browser with the Java plug-in in any Java-enabled web browser.
The WebNMS SNMP Utilities comes integrated with a web server
to facilitate this.
Features and Benefits Chart
Features
Benefits
MIB Browser
Supports UDP or TCP Network protocols for communication with respective agents
Can perform SNMP operations on multi protocol agents like UDP and TCP agents.
Support for all the three versions of the
SNMP - SNMPv1, SNMPv2c, and SNMPv3
Can handle three versions of the protocol
with one product
Support for USM and VACM definitions for
SNMPv3
Widely compatible with other standard applications
Support for all standard SNMP protocol operations - GET, GETNEXT, GETBULK and SET
Standard implementation
Support for receiving (v1,v2c,v3)Traps and (v2c,v3) INFORMS.
Better handling of devices
MultiVarbind support for SNMP operations
Better monitoring of devices
Viewer for large SNMP Tables, with sorting,
graphing, etc.
Better representaion of results
Support for saving SNMPv3 security parameters
information in a database
High scalability
Ability to plot real time graphs
Better graphical views
Support for MIB definitions as defined in
SMIv1 and SMIv2 formats
Suited for a wide range of deployment options
Database support for loading MIBs in MIB
Browser
Handles high volume of data and highly scalable
Various parsing levels - LENIENT, NORMAL,
SERIOUS, CRITICAL, and User Defined - to load MIB files
Better operability
SNMP management applets for web based network
management
Aids in interaction between applets and
managed devices where direct communication is prohibited
due to applet security policies
Internationalization support to localize
the screens to ay native language
Native language screens for users
Support for broadcast
Easier mass communication
SNMP Decoder
Decode SNMP PDUs and provides its equivalent
text that is human readable
Improved debugging
Trap Viewer
Logging of traps and informs for future
reference
Easier tracking and management
Filtering (Parsing) of traps and informs
to get the desired set
Better views
Loading standard parsers from MIB automatically
Better operability
Proxy Forwarder
Enables V3 managers to interface with V1
or V2C agents
Multi-version management
Proxy Forwarder Configurator
Provision to load and save configurations
for future reuse
One time configuration
Supports USM and VACM of SNMP V3
Compatible with other standard products
System Requirements
Operating Environment
Windows and UNIX platforms
Hardware Requirements
Minimum 64 MB RAM
Free disk space of 70 MB
Minimum processor speed of 233 MHz
Software Requirements
JRE 1.5 (Bundled with WebNMS SNMP Utilities package).
Java-enabled web browser (Firefox 2.x/IE 6.x) with Sun’s Java plug-in.
